NetBox Device View

Renders a visual front/rear panel of a device's physical ports and interfaces directly on the NetBox device detail page.

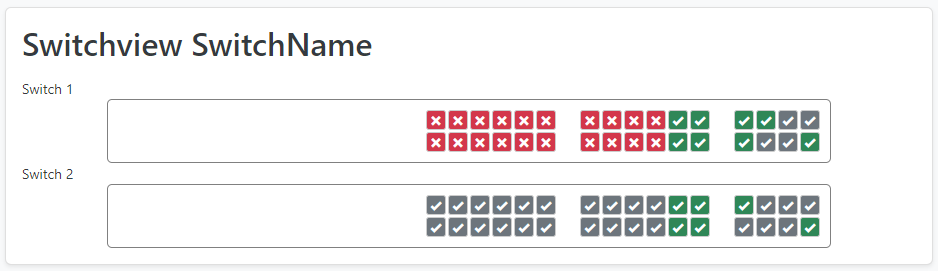

Example device view

Features

  • CSS Grid renderer — works for any DeviceView, no extra setup
  • SVG renderer — pixel-perfect scalable panels from a YAML layout
  • Port status colours — green / yellow / grey / red based on connection state
  • Cable colour mode — fills each port with the attached cable's colour
  • Module variants — swap port layouts when a module is installed
  • Virtual Chassis — renders each VC member as a separate panel
  • Patch panels — front and rear faces rendered side by side
